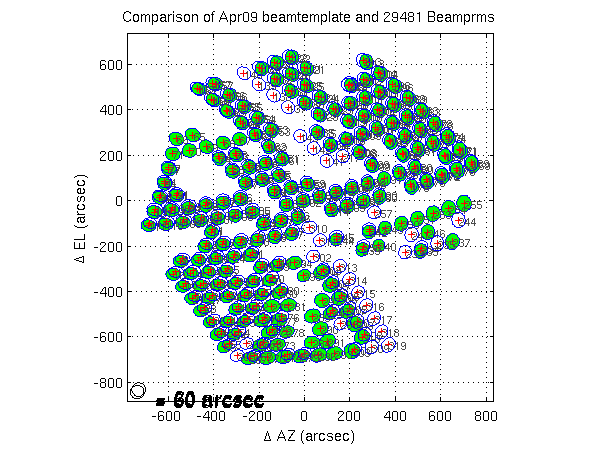

We compared the April 2009 beam template to the August 2007 measured beams from Mars.

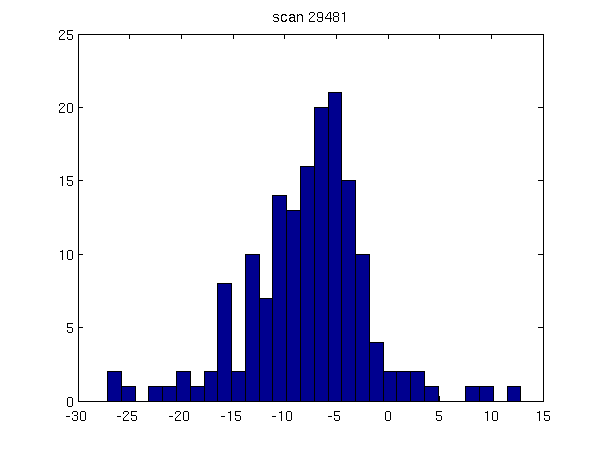

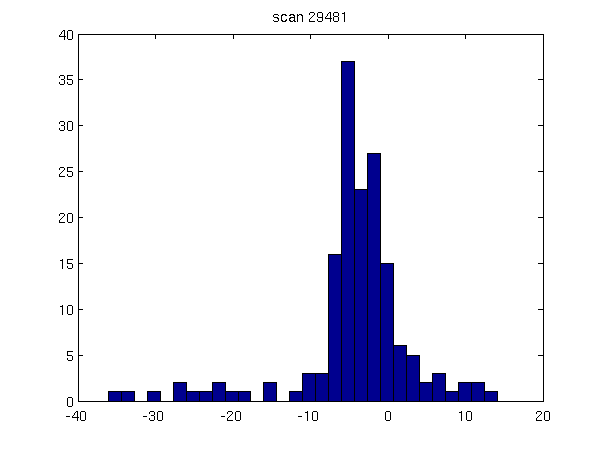

The beam positions appear offset slightly. The largest deviations come from the bottom left wedge (7 o'clock) Below are the % differences between the April 2009 template FWHM values and the August 2007 (scan 29481). The August beam template appears to be larger by ~5%
We've used % diff = (Aug2007 - Apr2009)./Aug2007
This topic: APEX_SZ > WebHome > APR09_Calibration > BeamTemplate Topic revision: r1 - 2009-09-09 - JamesKennedy
The beam positions appear offset slightly. The largest deviations come from the bottom left wedge (7 o'clock) Below are the % differences between the April 2009 template FWHM values and the August 2007 (scan 29481). The August beam template appears to be larger by ~5%
We've used % diff = (Aug2007 - Apr2009)./Aug2007
