This is an example time line for dark testing wafers.
Day |
Action |
Notes |
1 |
Kam mails next wafer |
|
2 - 3 |
We install wafer and start cooldown |
Usually a wafer arrives the day after Kam ships. With current wafer holder we can put directly in, but new holders usually require some machining. |
4 |
Pump down |
Pumping down usually only take one day. |
5 - 8 |
Cool down |
Cool down can take anywhere from 2 to 4 days depending on the thermal mass of the holder. |
9 - 12 |
Take measurements |
This timing is for a quick turn around. If we are not doing a quick turn I take more time to try and understand the system more and get complete measurements. |
12 (evening) |
Start warm up |
Kill cycle and turn on heaters. We are usually warm enough to open in the morning. |
13 |
Open up and pack wafer |
|
14 |
ship to Berkeley |
If everything is ready the we can open, pack and ship in one day. |
The following tests are standard (most example documents are for wafer KT7):
- Network analysis: Network Analysis
- Bolo IVs: IVs
- ETF: Electro-thermal time constants
- Tcs: Critical temperatures are now taken with a new PID control. I have not implemented an automatic pdf generation for them yet. Wafer 8.2.0's wiki page has a table with Tc values in mK.
- Bolo noise: Francois did some in depth noise measurements with KT7 this is an example of the data for one state where all the bolometers in the comb are biased 80% into the transition. KT7's wiki page has a large number of documents with noise taken in various configurations.
What we will do particularly for 8.2.1
- If there are ADC overloads with 8.2.1 we will take noise levels in arrangement where there are no overloads and also with the overloads occurring.
- We will also try to troubleshoot the problem to reduce or eliminate the issue. Are there particular approaches that Mike and Ziggy have found effective for this?
- We find ADC overloads in the following condition:
- Stage warm (700-800 mK)
- SQUIDs tuned
- No carriers

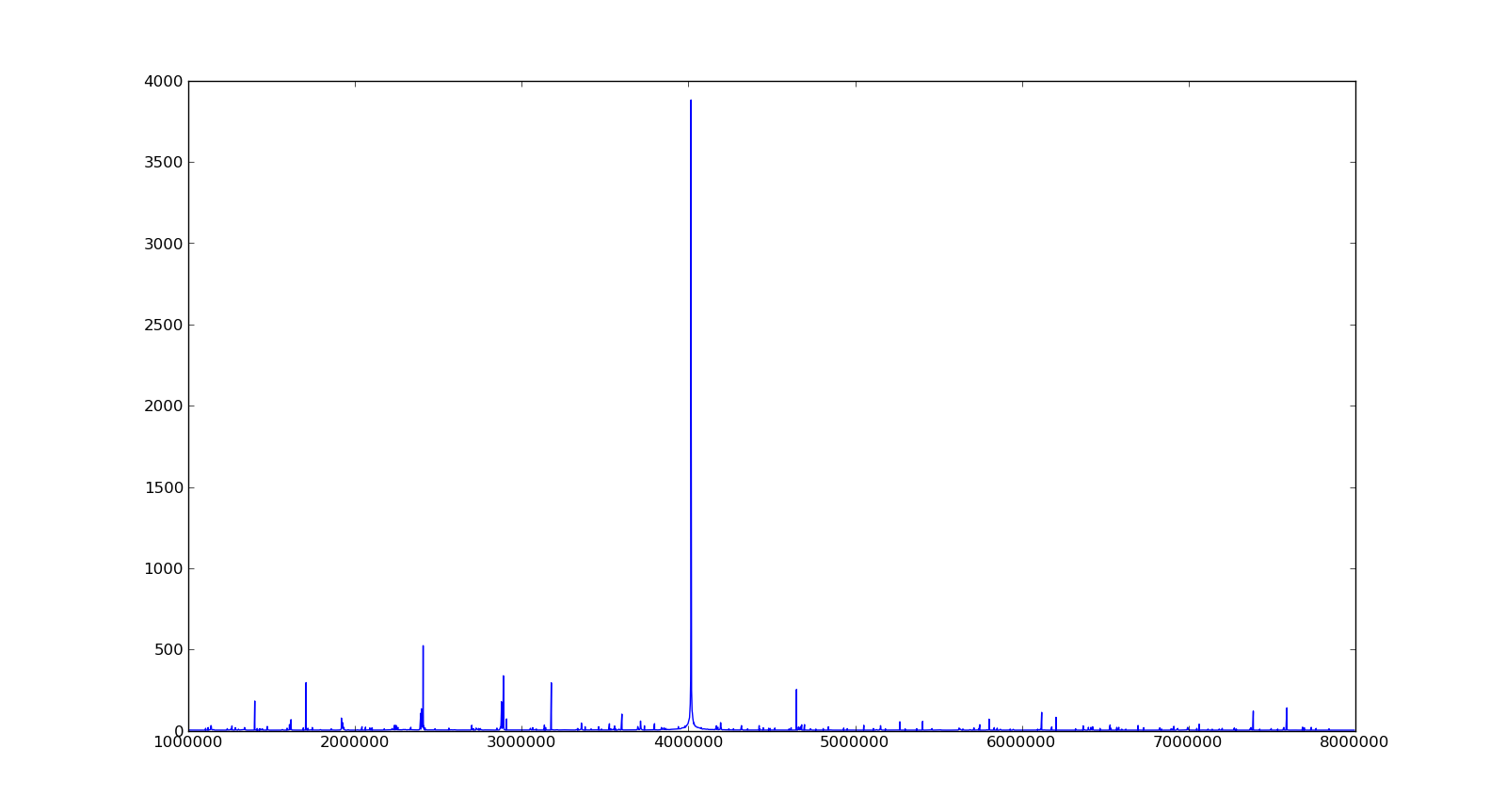

- This is a scan of demodulator input in this condition with demodulator gain 1. (ADC overload flag true)
- This noise was taken for comb A in the following configuration:
- Stage cold (230 mK)
- Bolometers overbiased
- Demod gain 2
- ADC overloads
- PB_8_2_1_20100118-M1.pdf: Full data taken at demod gain = 2 with bolometers overbiased
- PB_8_2_1_20100118-M1_processed.pdf: Overview of all the bolometers from M1
- PB_8_2_1_20100118-M6.pdf: Full data taken at demod gain = 2 with bolometers 0.8 of R_ob. Noise for combs B (153-1-*) and V (157-1-*) should be ignored as they have bolometers that latched earlier.
- PB_8_2_1_20100118-M6_processed.pdf: Overview of all the bolometers from M6
- PB_8.2.1_Combs__FJ.pdf: Noise data taken without any bad squids or combs. demod gain = 2, all bolos 0.8 R_ob, there were ADC overloads on both combs.
- PB_8.2.1_Combs_FJ_Summary.pdf: Summary of noise levels for combs F and J.
- We will take entire combs down to various depths into their transitions to investigate stability.
- I took combs A and J down into their transitions. I dropped them to 0.9 of starting resistance each time so the total fraction of R_ob would be 0.9, 0.81, 0.729.
- I found that J worked OK until 0.729 when bolometer 7 latched while tuning.
- Comb A showed the ADC overloading at 0.81, however all bolometer tuned to that depth. Not surprisingly the entire comb had problems when I tried to take it to 0.729.
- Run NA with low carrier amplitude (still good S/N) (carrier gain = 0, amplitude = 0.2)
- Run NA with high carrier amplitude (carrier gain = 3, amplitude =1)
- Take 2-3 bolometers down to latching
- Revisit those bolometers and see how low they can be nulled
- Take ETF tau measurements for a few bolometers at different depths in the transition - DONE
- Do standard ETF out to 5 kHz for a couple bolometers
- Make first measurement of this at overbias so we can separate the time constants
- Automate Tc document production
- Rewrite nulling to always take and return highest level of data and verbose only controls what's printed to the screen
Things of note
- I have been workin on a new ETF procedure however, we need to understand the analysis to use it's output
- Check any discrepancy between calculations and analysis code
- Determine why phase shift is in opposite direction from expected
- Determine why phase shift is not as large as expected. *Tc and Bolo noise measurements are not automated at the moment.

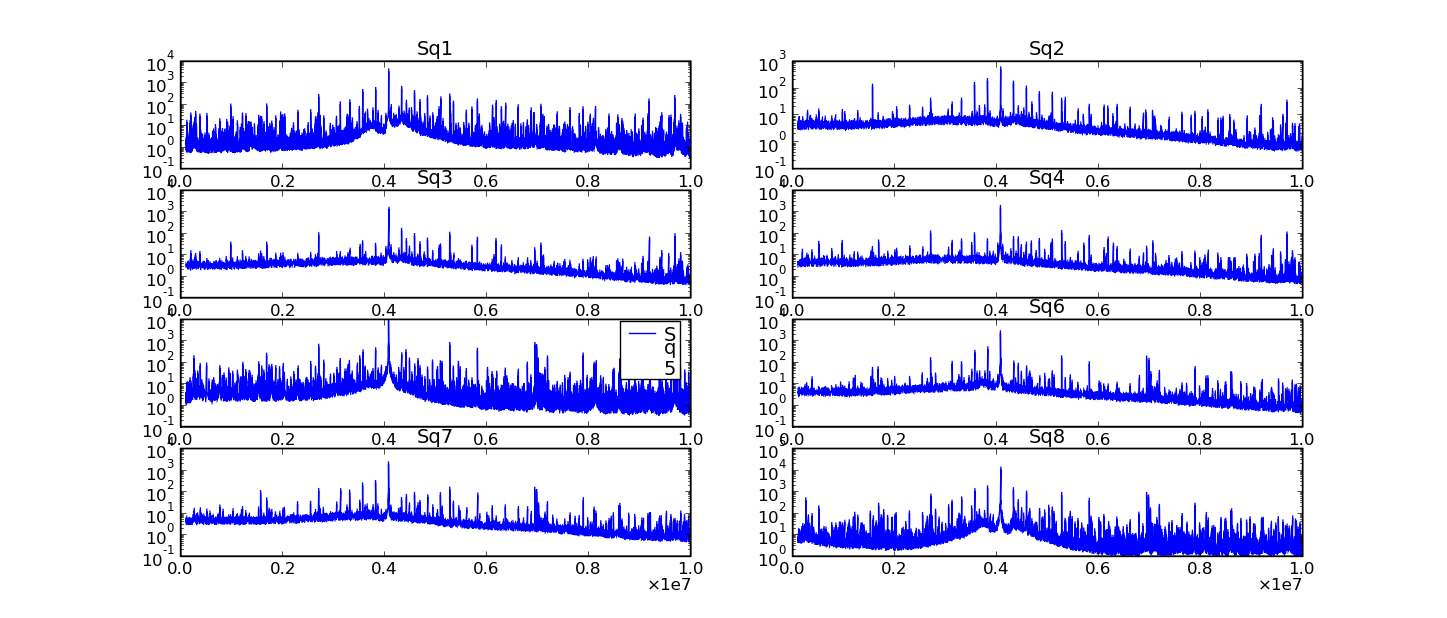

- XB1 squids spec analysis:
- K06.pdf: These were taken on Sunday Jan 24th, they are not the same bolos as I showed on Thursday the 22nd and demod gain = 0. Data shown is for all squids turned on and with the first squid turned off.
- P1.pdf: Taken Monday Jan 25th. I showed data for SqCh7 on the 22nd. Both data sets have demod gain = 2. Data shown is for all squids tuned and on, and all squids untuned and turned on.
- A note on the units on these plots. The units are rms of the time stream data. Talking with Kam we come up with a noise floor of 7.5 pA/sqrt(Hz).
- P1_demod1.pdf: Take Thursday Jan 28th. demod gain = 1. Each squid is turned on and tuned by itself. Strangely this shows a 5K feedback with lower peaks on the 4Mz.
- P1_OpenVs10K.pdf: plots comparing openloop and 10K feedback.
--
